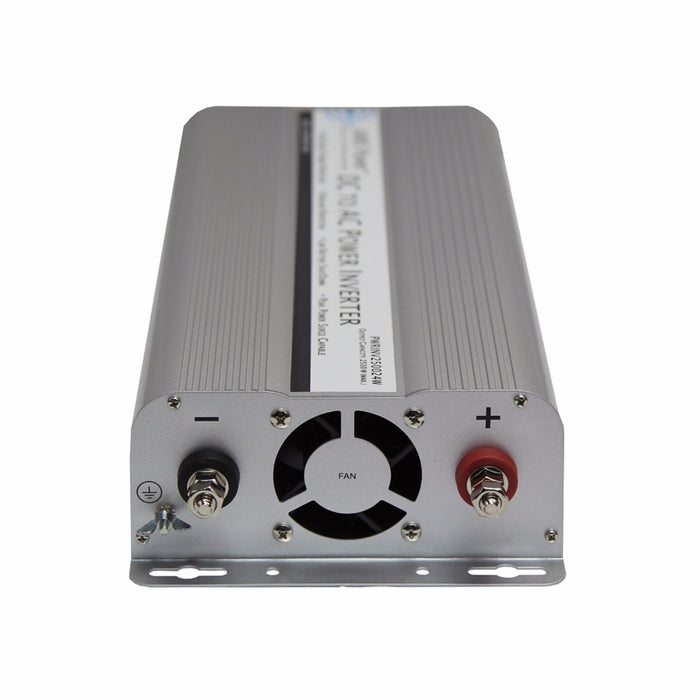

AIMS Power 2500 Watt 12 Volt AIMS Power Inverter w- Features
The 2500 watt 12 volt AIMS Power inverter converts DC (direct current) power stored by deep-cycle batteries into AC (alternating current) electricity.
This unit produces a modified sine wave, which is capable of running most-all tools and appliances. Use this product for off-grid, mobile and emergency backup power for lights, fans, space heaters, coffee makers, to charge electronic devices and much more.
The features on this unit include over-temperature and over-load LED indicators as well as voltage and amperage meters used to moniter the usage of a battery bank. The unit also has a port for an optional remote.
For models purchased before 1/20/2015 use AIMS Power Remote On/Off Switch, part number PWRIREMPWR
For models purchased after 1/20/2015 use AIMS Power Flush Mount Remote, part number REMTOEHF
Make sure to watch the video and check out the features and specs tabs above as well to learn more about this unit.
Features:- 2500Watt max continuous power
- 12 Volt Power Inverter
- Modified sine wave
- Volt meter on front panel to monitor your battery voltage
- Amp meter on front panel to monitor your current use (rate at which battery is drained)
- Over Temperature LED indicator
- Over Load LED indicator
- 2 AC receptacles (UL rated 1500 watts max per an outlet)
- On/off switch
- Over Temperature protection
- Over Load protection Single cooling fan operation thermally controlled Internally fuse protected ac output short circuit protection
- Auto reset on most fault conditions
- Aluminum case for optimal cooling
- Pre-wired for remote on/off switch
- Pre-slotted mounting plate
- Instruction manual
- Free 1 year tech support
- 1 Year Warranty Parts and Labor
- Continuous output power: 2500 Watts
- Surge power capability (peak power): 5000 Watts
- dc input / operating voltage: 10.5 to 17 Volts
- Output voltage: 120 Volts ac +/- 10%
- Output wave form: modified sine wave with phase correction
- Output frequency: 60 Hz +/- 1 Hz
- Battery low voltage alarm: 10.5 +/- 0.5 Volts
- Battery low voltage shutdown: 10 +/- 0.5 Volts
- No load current: < 0.2 Amps
- Full load efficiency: 90%
- 1/3 load efficiency: 95%
- No load minimum operating temperature: -15 degrees Celsius
- Full load maximum operating temperature: 55 +/- 5 degrees Celsius (automatic shutdown)
- AC Output Socket Type: quadruple Type 2 -3 prong
- High input voltage protection: 17 volts
- Low input voltage shutdown: 10 volts
- Internal fuse protection
- Product size (L x W x H): 14.5"X 6.5"X 3.0rdquo;
- Weight: unit 10 lbs boxed 12 lbs
- UL maximum recommended per outlet 1500W
