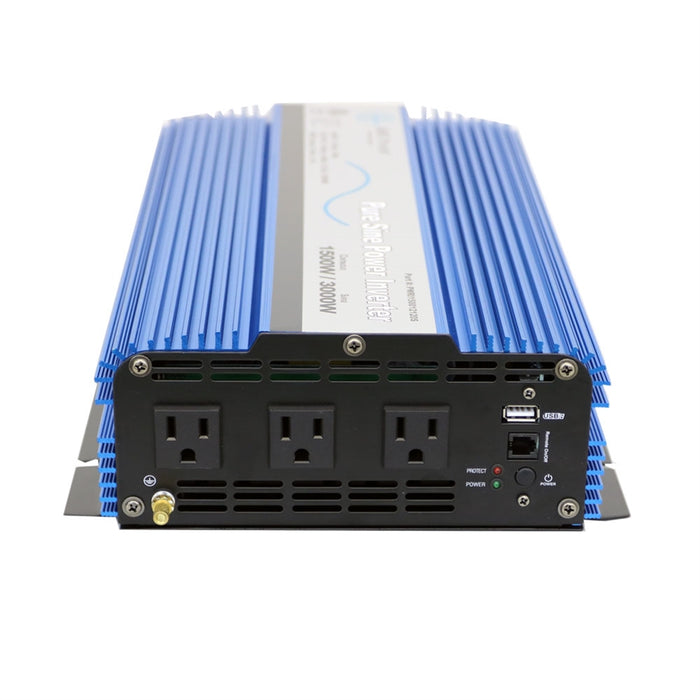

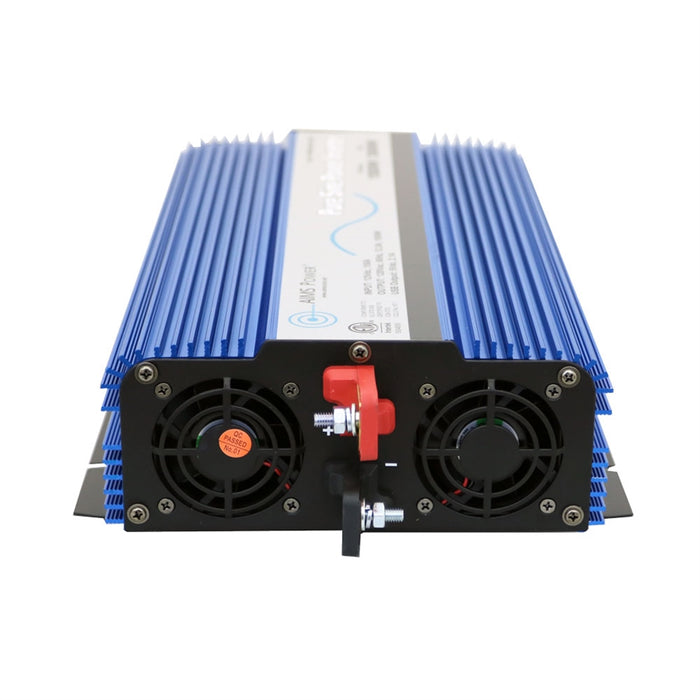

AIMS Power 1500 Watt Pure Sine Inverter 12Vdc ETL Listed to UL 458
Power inverters have become a staple in businesses and homes around the world due to intermittent brown and black-outs. AIMS pure sine wave power inverters provide reliable transformation of DC power from a battery (such as the one in a car or RV) into AC power that can then be used to run lights, computers, printers, televisions, medical equipment* and a broad range of appliances. And when it comes to selecting an inverter, it is helpful to know that AIMS pure sine wave inverters represent the most technologically advanced, lightweight, compact and diverse inverters on the market to help ensure the widest use of applications. For over a decade, the AIMS Power has consistently delivered the broadest range of sizes to accommodate virtually every power requirement.
Advantages of a pure sine inverter:- Equipment runs more efficiently
- Motors run cooler
- Cleaner power
- Ideal for power tool chargers, laser printers, electric shavers, microwaves, variable speed motors, TVs, medical equipment
To select the right inverter, first determine what devices you would need to run in the event of a power outage. Then, select the appropriate inverter that can carry the combined wattage requirements of these devices. Please see our tech support section for start up averages for all devices. At AIMS, you all discover our inverters range from 75 watts up to 50,000 watts - more than enough to power nearly every application imaginable.
Features:- Pure sine
- ETL listed and conforms to UL458 standards
- Hard wire direct connect terminal block for AC
- 2000 watt continuous power
- 4000 watt surge
- Over voltage shutdown
- Bypass whether inverter is on or off
- Under voltage shutdown
- Intelligent cooling fan
- Automatic transfer switch 25 amps
- Conformal coated for marine applications
- AC pass through without being turned on or connected to a battery bank
- 25A resettable AC breaker
- No programming or DIP switch changes needed for operation
- Remote switch available
- Less than 20msec typical transfer time
- 2 year warranty
- 2000 watts continuous
- 4000 watt surge (not recommended for start up applications)
- Built in automatic transfer switch 25 amp transfer <20 msec
- DC input voltage 10-16V
- AC input voltage 120VAC +/-10%
- Output voltage 120VAC, 60HZ
- Efficiency 86-90%
- THD: <3%
- Over voltage shutdown 16VDC +/- .5V
- Under voltage shutdown 10VDC +/- .5V
- Under voltage alarm 10.3VDC +/- .3V
- Over temp protection 150 degrees F +/- 5 degrees F
- Thermal fan
- Pure sine output
- No load current: 1.2A
- Direct connect terminal block
- L x W x H: 21.5" x 9.5" x 3.5"
- Unit - 14.4 lbs
- Boxed - 18 lbs
