WFCO

Brand: WFCO Color: Color may vary Features: WFCO WF-8900 Series Power Center Converter Charger - 45 Amp Binding: Automotive Release Date: 05-09-2014 model number: 0318.1451 Part Number: WF-8945PEC Details: This WFCO RV Power Center is lightweight and has a decorative door. It provides 45 Amps and a clean, constant 13.6 VDC nominal output for reliable operation of electronics and appliances. Automatic three-stage charging extends the life of your battery with output voltage modes of 13.2 VDC range "float" mode, 13.6 VDC range "absorption" mode, and 14.4 VDC range "bulk" charge mode. The cooling fan only runs when needed to maintain peace and quiet. It is designed to not cause interference with televisions, radios, or other signals. Electronic current limiting automatically shuts down the power during overload or short-circuit conditions, protecting the life of your power center and electrical system. It provides AC and DC distribution. It can accommodate a 30 Amp main AC circuit breaker and up to five branches of circuits. Eleven-branch DC circuits are available with LED lights for each DC circuit to illuminate and identify open circuits. EAN: 0700115561204 Package Dimensions: 16.0 x 13.9 x 11.2 inches

Brand: WFCO Features: Maximizes battery power and efficiency Three status indicators: Amber (inverter mode), Green (AC input), Red (inverter fault), LCD Message Panel (operation status) Maintains reverse polarity protection in the event that batteries are hooked up backwards Automatic transfer system of AC input to bypass when required Power Output: 1000W Binding: Automotive model number: WF-5110RS Part Number: WF-5110RS Details: WFCO’s WF-5110RS is the new and improved 1000-watt inverter in our product line. The new design reduces parasitic draw, while maximizing battery power and efficiency. Featuring automatically resettable Reverse Polarity protection, the WF-5110RS is protected from permanent damage should a battery be connected backwards. Once the battery connections are corrected, the unit will operate normally. The WF-5110RS also has an exclusive internal transfer system which automatically allows the AC input to bypass the inverter when the inverter is connected to an AC power source. WFCO’s WF-5110RS improved upon the same reliable inverter that customers have come to love, with the added benefit of a longer lasting battery that customers need. Additionally, the WF-5110RS provides high-efficiency power at full-load conditions with safeguards that include overload protection, over-temperature protection, and short-circuit protection. The cooling fan enhances efficiency as its operation is controlled by the amount of load incurred by the inverter. FCC Class B compliance, which means that the inverter is designed not to cause interference with televisions, radios, or other signals. EAN: 0816227012654 Package Dimensions: 13.3 x 8.7 x 3.7 inches

Brand: WFCO Features: Input Voltage/Hz: 120 VAC or 240 VAC Dimensions: 13.75˝ wide; 9.5˝ high; 4˝ deep Weight: 3.75 lbs. AC Main Breaker: 30 A, 50 A Part Number: WF-8930/50NPB-50 Details: The 8930/50 Series can be a 50 Amp or 30 Amp AC distribution center. It has 15 available DC, and up to 12 AC, branch circuits. The 8930/50 can be coupled with any of the WF-9800 switch mode converters with 55, 65, or 75 Amps, which gives engineers more flexibility in product design. The WFCO 8930/50 Series distribution center comes with the WFCO Two-Year Limited Product Warranty. These distribution panels have many features desired by the OEM and retail customers, and have been tested by the Underwriters Laboratories? (UL) to meet both the US and Canadian standards. Our 9800 Series converters used with the 8930/50 centers are designed to comply with FCC Class B, assuring quiet operation and non-interference with other appliances. Nominal 13.6 VDC output voltage of the switch mode 9800 Series converter is easier on electronics, motors, and other appliances. There is no need for the battery to be inline to filter the circuits. EAN: 0701236796247 Package Dimensions: 14.2 x 10.4 x 6.7 inches

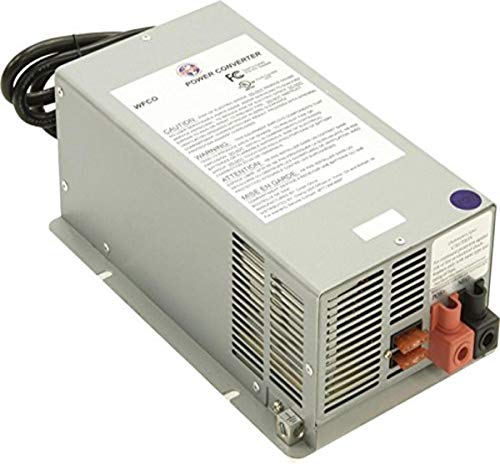

Brand: WFCO Features: Quiet operation is assured as the cooling fan runs only when required by the electric load Fully insulated DC connections are made for protection with an open-top design for ease of use for fast and nearly effortless installation Model WF-9855; Bulk Mode (Quick Charging Voltage): 14.4V DC Output: 55 Amps DC Input: 105-130 VAC, 60 Hz, 940W Binding: Automotive Release Date: 17-01-2014 model number: WF-9855 Part Number: WF-9855 Details: The Versatile, Advanced Power Source Solution Convenient Deck-Mount Installation 3 Stage Battery Charging System Led Fuse Boards EAN: 0799530460490 Package Dimensions: 11.7 x 6.4 x 4.4 inches

Brand: WFCO Color: Gray Features: Designed not to cause interference with televisions, radios, or other signals Provides 65 Amps of clean, reliable DC power, which is ideal for powering electronics and appliances Advanced 3-stage charger Convenient deck-mount installation Standard Safety Features: Over Current, Over Temperature, Over Voltage, Reverse Polarity Binding: Automotive model number: WF-9865-AD-CB Part Number: WF-9865-AD-CB Details: The WF-9800 Series converter/chargers are versatile, advanced power source solutions. The WF-9865 model provides 65 Amps of clean, reliable DC power, which is ideal for powering electronics and appliances. The 9800 Series provides clean power, even without filtering from a battery. Quiet operation is assured as the cooling fan runs only when needed. The converter is designed not to cause interference with televisions, radios, or other signals. Automatic three-stage battery charging maintains your battery’s life with three nominal voltage output modes: 13.2 VDC range “float” mode, 13.6 VDC range “absorption” mode, and a 14.4 VDC range “bulk” charge mode. Electronic current limiting automatically shuts down the power during overload or short-circuit conditions. Model: WF-9865. Output: 65 Amps DC. Input: 105-130 VAC, 60 Hz. EAN: 0816227012951 Package Dimensions: 12.0 x 6.3 x 4.0 inches
